यहां, हम सीखेंगे कि ओपनसीवी में आंख का पता कैसे लगाया जाए। हम आंखों का पता लगाने के लिए 'C:/opencv/sources/data/haarcascades' में स्थित haarcascade_eye.xml क्लासिफायर का उपयोग करेंगे। आंखों का पता लगाने के लिए, हमें इन शीर्षलेखों को जोड़ना होगा।
पहला हैडर
OpenCV में आंख का पता लगाने और उसे ट्रैक करने का तरीका दिखाने के लिए निम्न प्रोग्राम।
उदाहरण
#include<iostream>
#include<opencv2/highgui/highgui.hpp>
#include<opencv2/imgproc/imgproc.hpp>
#include<opencv2/objdetect/objdetect.hpp>
using namespace cv;
using namespace std;
int main() {
Mat frame;//declaring a matrix to video frame in it//
namedWindow("Detect");//Declaring a window to show our work//
VideoCapture image(0);//capturing video from default camera//
if (!image.isOpened()){ //Error message if video source is not found//
cout << "Couldn't load video from the source.Make sure your camera is working properly." << endl;
system("pause");
return 0;
}
double height = image.set(CAP_PROP_FRAME_HEIGHT, 480);//setting up height of each frame//
double width = image.set(CAP_PROP_FRAME_WIDTH, 640);//setting up width of each frame//
CascadeClassifier face_cascade, eyes_cascade;//declaring a CascadeClassifier object//
face_cascade.load("C:/opencv/sources/data/haarcascades/haarcascade_frontalface_alt.xml");//loading the cascade classifier//
eyes_cascade.load("C:/opencv/sources/data/haarcascades/haarcascade_eye.xml");
while (true) {
bool temp = image.read(frame);//loading video frames from source to our matrix named frame//
vector<Rect>faces;//Declaring a vector named faces//
face_cascade.detectMultiScale(frame, faces, 1.1, 2, 0 | CASCADE_SCALE_IMAGE, Size(100, 100));//detecting the face
for (int i = 0; i < faces.size(); i++){ //for locating the face
Point center(faces[i].x + faces[i].width * 0.5, faces[i].y + faces[i].height * 0.5);//getting the center of the face//
ellipse(frame, center, Size(faces[i].width * 0.5, faces[i].height * 0.5), 0, 0, 360, Scalar(255, 0, 255), 4, 8, 0);//draw an ellipse on the face//
Mat faceROI = frame(faces[i]);//Taking area of the face as Region of Interest for eyes//
vectoreyes;//declaring a vector named eyes//
eyes_cascade.detectMultiScale(faceROI, eyes, 1.1, 2, 0 | CASCADE_SCALE_IMAGE, Size(5, 5));//detect eyes in every face//
for (size_t j = 0; j < eyes.size(); j++){ //for locating eyes//
Point center(faces[i].x + eyes[j].x + eyes[j].width * 0.5, faces[i].y + eyes[j].y + eyes[j].height * 0.5);//getting the centers of both eyes//
int radius = cvRound((eyes[j].width + eyes[j].height) * 0.25);//declaring radius of the eye enclosing circles//
circle(frame, center, radius, Scalar(255, 0, 0), 4, 8, 0);//drawing circle around both eyes//
}
}
imshow("Detect", frame);//showing result in window named 'Detect'//
if (waitKey(30) == 27){ //wait time for each frame is 30 milliseconds//
break;
}
}
return 0;

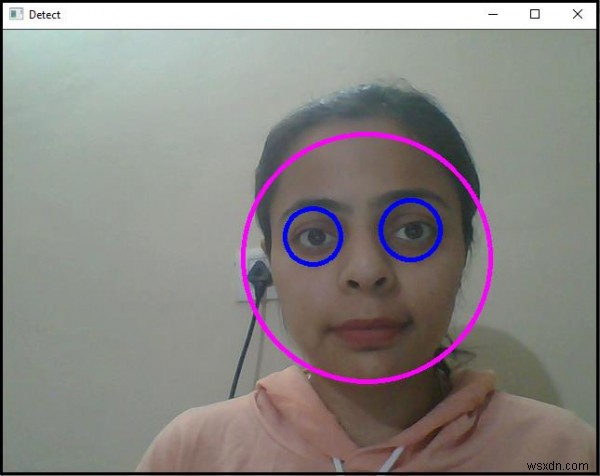

} आउटपुट
