नागिओस में विंडोज़ होस्ट जोड़ना:एक चरण-दर-चरण मार्गदर्शिका

1. RHEL/CentOS 6.x/5.x और Fedora 19/18/17 पर नागियोस 4.0.1 कैसे स्थापित करें
2. Nagios मॉनिटरिंग सर्वर में Linux होस्ट जोड़ें

1. Windows मशीन पर NSClient++ ऐडऑन इंस्टॉल करें।
2. विंडोज मशीन की निगरानी के लिए नागियोस सर्वर कॉन्फ़िगर करें।
3. Windows मशीन मॉनिटरिंग के लिए नई होस्ट और सेवा परिभाषाएँ जोड़ें।
4. नागियोस सेवा को पुनः आरंभ करें।

1. ए check_nt कमांड परिभाषा पहले ही command.cfg में जोड़ दी गई है फ़ाइल. इस परिभाषा कमांड का उपयोग check_nt द्वारा किया जाता है विंडोज़ सेवाओं की निगरानी के लिए प्लगइन।
2. एक विंडोज़-सर्वर होस्ट टेम्पलेट templates.cfg में पहले ही बनाया जा चुका है फ़ाइल. यह टेम्प्लेट आपको नई विंडोज़ होस्ट परिभाषाएँ जोड़ने की अनुमति देता है।

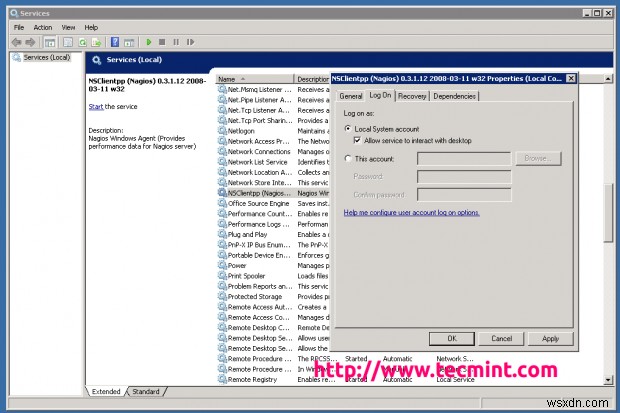

चरण 1:विंडोज़ मशीन पर NSClient++ एजेंट स्थापित करना

1. http://sourceforge.net/projects/nscplus/

C:\NSClient++

nsclient++ /install

nsclient++ SysTray

[modules]
;# NSCLIENT++ MODULES
;# A list with DLLs to load at startup.
; You will need to enable some of these for NSClient++ to work.
; ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! !
; * *
; * N O T I C E ! ! ! - Y O U H A V E T O E D I T T H I S *
; * *
; ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! !
FileLogger.dll
CheckSystem.dll
CheckDisk.dll
NSClientListener.dll
NRPEListener.dll
SysTray.dll
CheckEventLog.dll
CheckHelpers.dll
;CheckWMI.dll
;
; RemoteConfiguration IS AN EXTREM EARLY IDEA SO DONT USE FOR PRODUCTION ENVIROMNEMTS!
;RemoteConfiguration.dll
; NSCA Agent is a new beta module use with care!
;NSCAAgent.dll
; LUA script module used to write your own "check deamon" (sort of) early beta.
;LUAScript.dll
; Script to check external scripts and/or internal aliases, early beta.
;CheckExternalScripts.dll
; Check other hosts through NRPE extreme beta and probably a bit dangerous! :)
;NRPEClient.dll

[Settings]
;# ALLOWED HOST ADDRESSES
; This is a comma-delimited list of IP address of hosts that are allowed to talk to the all daemons.
; If leave this blank anyone can access the deamon remotly (NSClient still requires a valid password).
; The syntax is host or ip/mask so 192.168.0.0/24 will allow anyone on that subnet access
allowed_hosts=172.16.27.41

[NSClient]
;# NSCLIENT PORT NUMBER
; This is the port the NSClientListener.dll will listen to.
port=12489

nsclient++ /start

चरण 2:नागियोस सर्वर को कॉन्फ़िगर करना और विंडोज़ होस्ट जोड़ना

[root@tecmint]# vi /usr/local/nagios/etc/objects/windows.cfg

###############################################################################
###############################################################################
#
# HOST DEFINITIONS
#
###############################################################################
###############################################################################
# Define a host for the Windows machine we'll be monitoring
# Change the host_name, alias, and address to fit your situation
define host{
 use windows-server ; Inherit default values from a template
 host_name winserver ; The name we're giving to this host
 alias My Windows Server ; A longer name associated with the host
 address 172.31.41.53 ; IP address of the host
 }

define service{
 use generic-service
 host_name winserver
 service_description NSClient++ Version
 check_command check_nt!CLIENTVERSION
 }
Add the following service definition to monitor the uptime of the Windows server.
define service{
 use generic-service
 host_name winserver
 service_description Uptime
 check_command check_nt!UPTIME
 }
Add the following service definition to monitor the CPU utilization on the Windows server and generate a CRITICAL alert if the 5-minute CPU load is 90% or more or a WARNING alert if the 5-minute load is 80% or greater.
define service{
 use generic-service
 host_name winserver
 service_description CPU Load
 check_command check_nt!CPULOAD!-l 5,80,90
 }
Add the following service definition to monitor memory usage on the Windows server and generate a CRITICAL alert if memory usage is 90% or more or a WARNING alert if memory usage is 80% or greater.
define service{
 use generic-service
 host_name winserver
 service_description Memory Usage
 check_command check_nt!MEMUSE!-w 80 -c 90
 }
Add the following service definition to monitor usage of the C:\ drive on the Windows server and generate a CRITICAL alert if disk usage is 90% or more or a WARNING alert if disk usage is 80% or greater.
define service{
 use generic-service
 host_name winserver
 service_description C:\ Drive Space
 check_command check_nt!USEDDISKSPACE!-l c -w 80 -c 90
 }
Add the following service definition to monitor the W3SVC service state on the Windows machine and generate a CRITICAL alert if the service is stopped.
define service{
 use generic-service
 host_name winserver
 service_description W3SVC
 check_command check_nt!SERVICESTATE!-d SHOWALL -l W3SVC
 }
Add the following service definition to monitor the Explorer.exe process on the Windows machine and generate a CRITICAL alert if the process is not running.
define service{
 use generic-service
 host_name winserver
 service_description Explorer
 check_command check_nt!PROCSTATE!-d SHOWALL -l Explorer.exe
 }

[root@tecmint]# vi /usr/local/nagios/etc/nagios.cfg

# Definitions for monitoring a Windows machine
cfg_file=/usr/local/nagios/etc/objects/windows.cfg

[root@tecmint]# /usr/local/nagios/bin/nagios -v /usr/local/nagios/etc/nagios.cfg

Total Warnings: 0
Total Errors: 0
Things look okay - No serious problems were detected during the pre-flight check

[root@tecmint]# service nagios restart
Running configuration check...done.
Stopping nagios: done.
Starting nagios: done.
